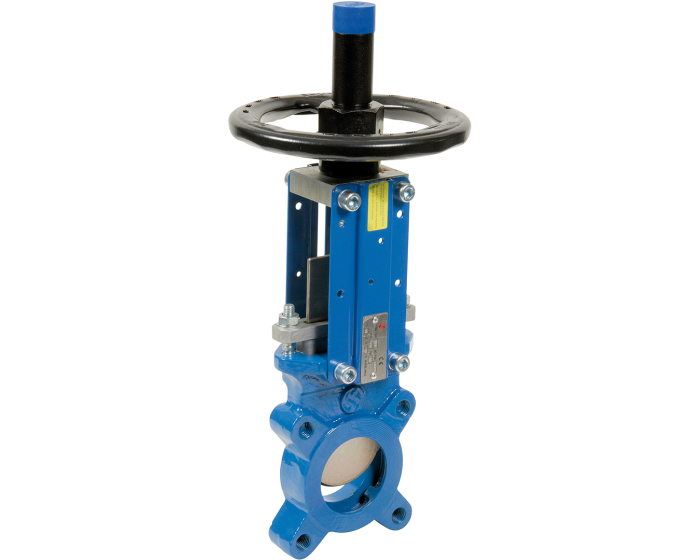

The 176 series unidirectional knife gate valve is made of cast iron with metal seat, rising stem, non rising handwheel, lug type, PN10 flange connection. It is suitable for waste water, paper pulp, chemical, food industry, powder.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Type of paint | Epoxy/polyester |
| Opening device | Handwheel |
| Application | Industry |
| Shaft/stem matérial | Stainless steel AISI 304 |
| DN | DN50 - 2'' |
| Face to Face (mm) | 40.0 |
| Sealing | Metal / Metal |
| Fluid | Abrasive fluids / Dirty water / Sludge |
| Body material | Cast iron |
| Packing gland | Yes |
| PS (bar) | 10 |
| Connections | Between flanges PN10/16 |
| RAL (Paint) | 5005 |
| Seats | Cast iron |
| TS max (°C) | 90 |
| TS min (°C) | -10 |
| Warranty period | 2 years |
| Type of stem | Rising |
| Main product colour | Blue |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Between flanges PN10/16 Cast iron DN50 - 2'' | 176050 | S1010214 |
€145.20
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Cast iron DN65 - 2''1/2 | 176065 | S1010215 |
€156.14
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Cast iron DN80 - 3'' | 176080 | S1010216 |
€163.10
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Cast iron DN100 - 4'' | 176100 | S1010217 |
€180.86
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Cast iron DN125 - 5'' | 176125 | S1010218 |
€217.80
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Cast iron DN150 - 6'' | 176150 | S1010219 |
€247.63
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Cast iron DN200 - 8'' | 176200 | S1010220 |
€412.73
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Cast iron DN250 - 10'' | 176250 | S1010221 |
€523.43
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Cast iron DN300 - 12'' | 176300 | S1010222 |
€706.43
(excl. btw)
|
add to cart |
